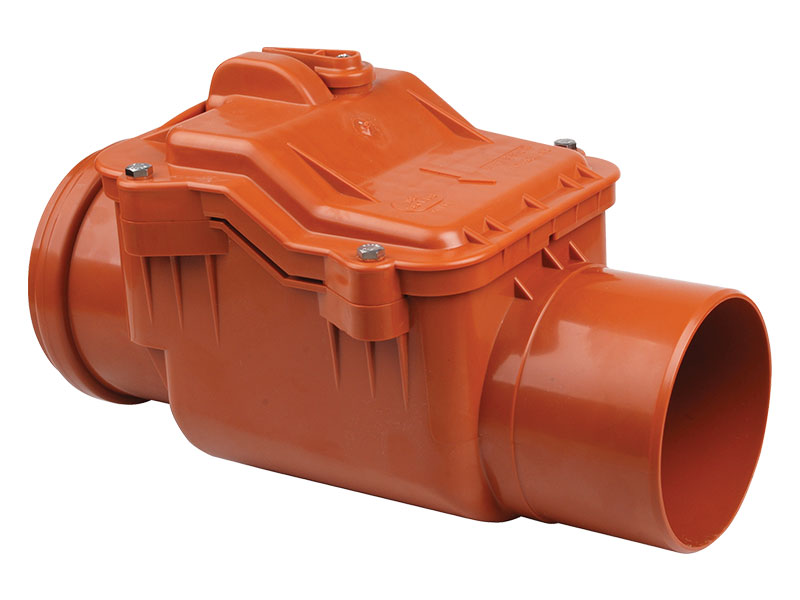

None-Return Valves for Waste Water

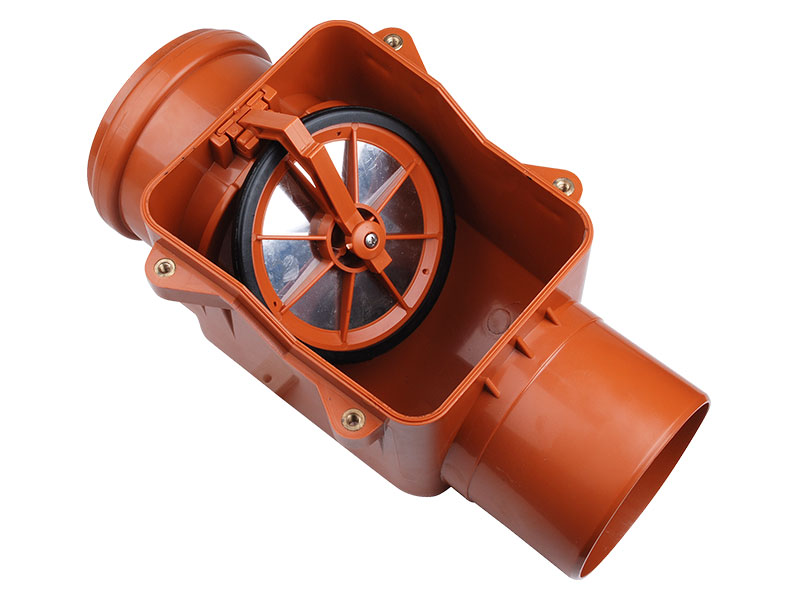

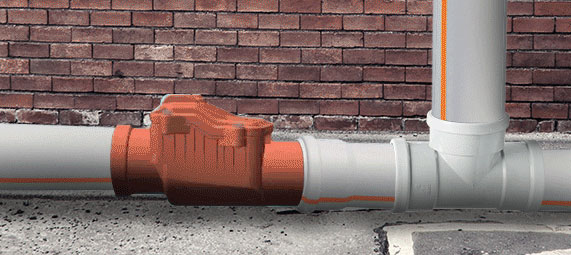

This devices offers effective protection against the backflow of sewage and stormwater into homes. Under normal operation, the flapper(s) opens and allows waste water to exit to sewer line. During a backflow, the flapper seals closed, stopping the flow from reaching interior drains entering the living space. Steel reinforced plate prevents vermin and insects travelling up the pipe. They can also be installed on the main line before it enters a building.

Order Nr.Diameter(mm)Package
NV00.0505025
NV00.0757540
NV00.11011032
NV00.12512532
NV00.16016018
NV00.2002001
NV00.2502501
NV00.3153151

General Benefits:

  • Decorative appearance,

  • Easy installation and easy maintenance,

  • Stops odours, insects and sewer rats,

  • ABS: Ø50, Ø75, Ø110, Ø125, Ø160,

  • PVC: Ø200, Ø250, Ø315,

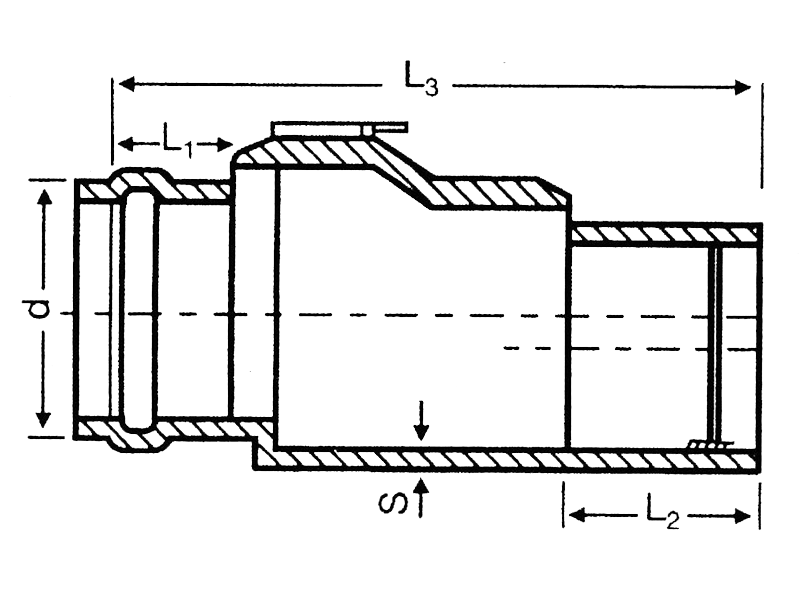

ø d(mm)S (mm)L1(mm)L2(mm)L3(mm)
1103,56564318
1254,17571318
1604,17070350
2004,111089450
2506,2144104566
3157,7183144728

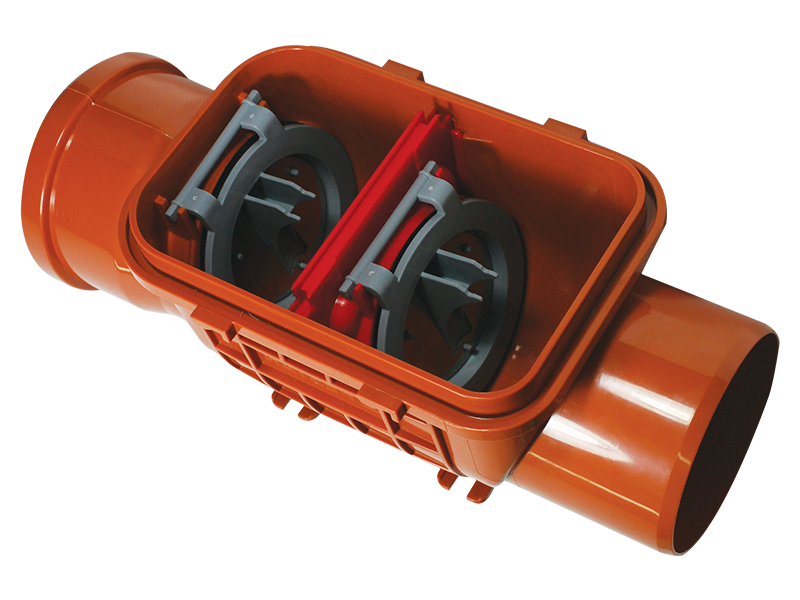

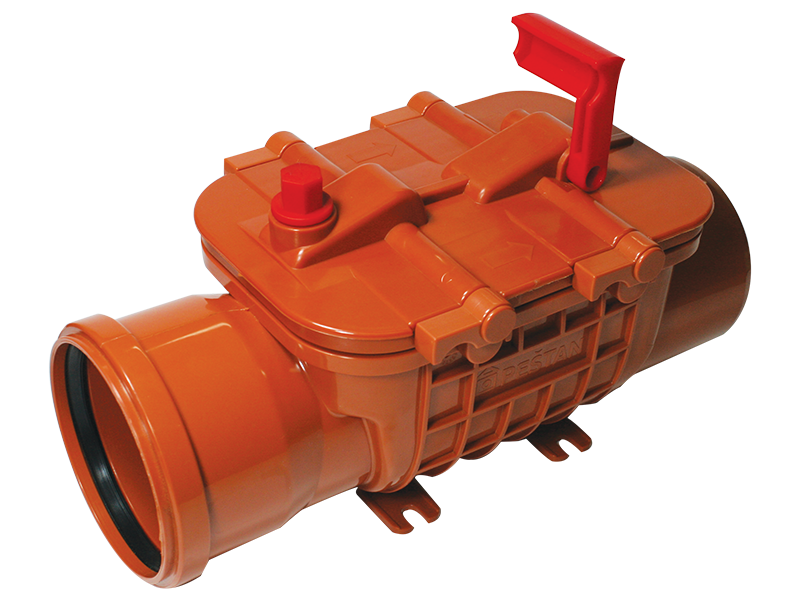

Non-Return Valve with Double Flaps

Order Nr.Diameter(mm)Package
NV01.11011032

*ABS

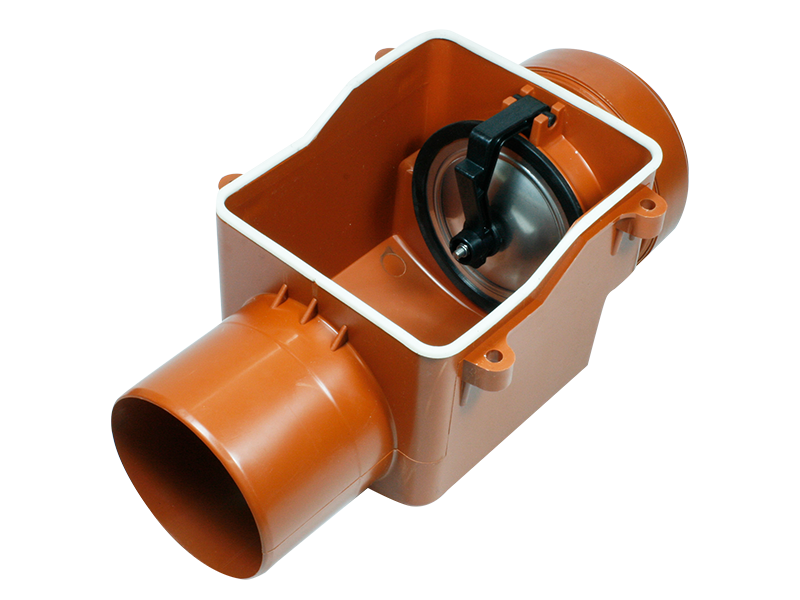

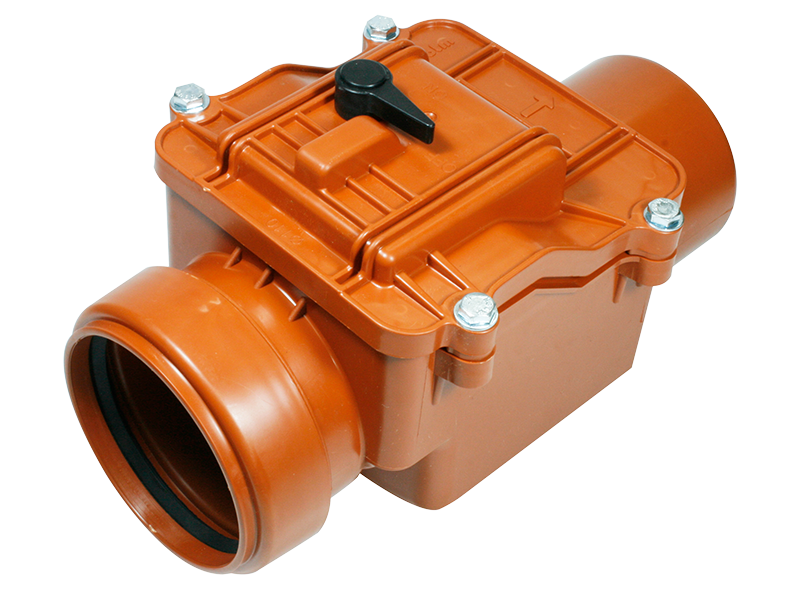

Non Return Valve for Waste Water – NanoTM

Order Nr.Diameter(mm)Package
NV05.1101108

*Polypropylene

Non-return valve, Check valve, Backwater valve, PVC, ABS, PP
