Modular Channels

Modular Drainage Channel is a specific type of floor drain. It collects rain waters and drains rain waters quickly from where. It is used for the rapid evacuation of surface water.

General Benefits:

  • Made of Plastic,
  • Economical and decorative,
  • Light, movable and easy installation,
  • Impact resistant, Chemical resistance,
  • Easy water flow,
  • 2 color options (Black and white),
  • Optional bottom outlet or side outlet
  • Have A15 – B125 standard,
    C125 standard with metal grate,

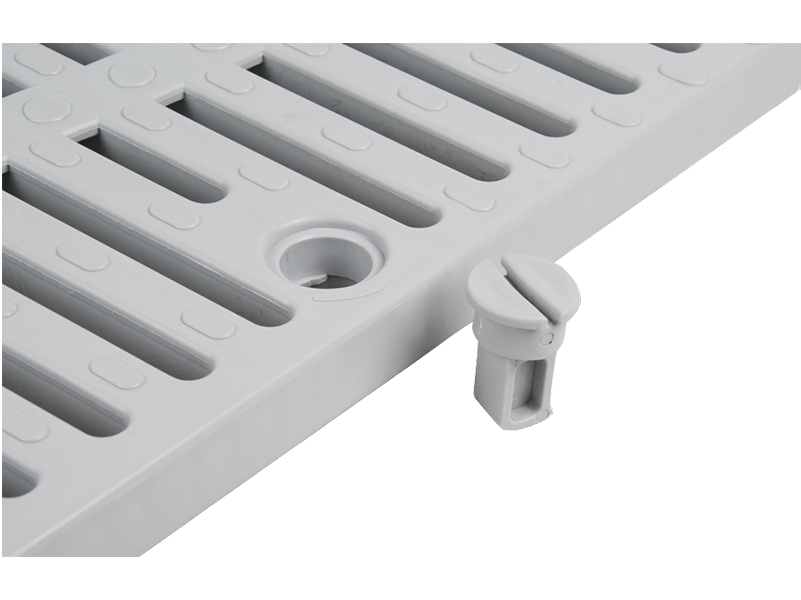

  • Patented child protection system
  • Optional with metal grate,

Applications:

  • In front of garage,
  • Around swimming pool,
  • Around football stadium,
  • Airports ,
  • Hospitals,
  • Industrial Estate ,
  • Schools ,
  • Landscaping,
  • Stock farming
  • Everywhere, where storm
    water control is needed
  • Food procesing plants,
  • Car washes,
  • Car repair shops,
  • Locker rooms and showers,
  • Water treatment plants,
  • Wastewater treatment plants,
  • Animal shelters,
  • Poultry growers,

MC Application Examples

Modular Channel 100/55

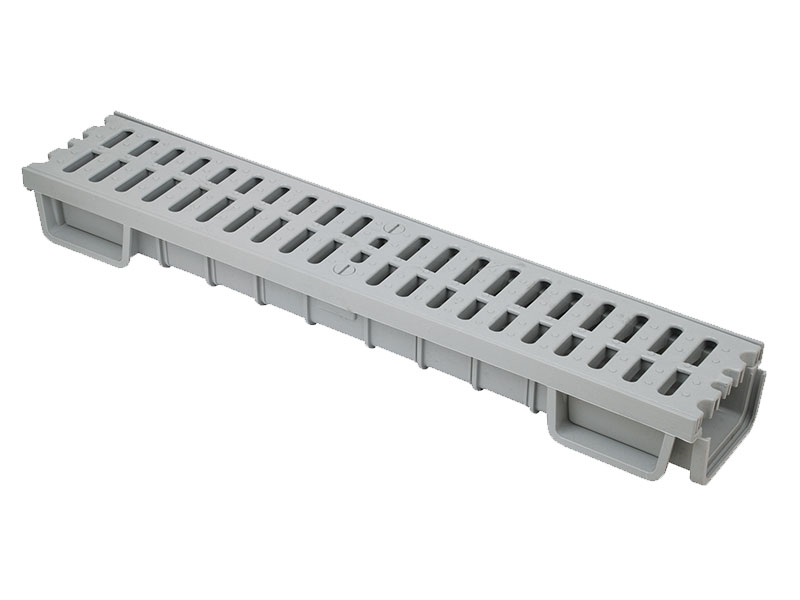

MC00.100

MC20.100

MC30.100

MC90.100

MC91.100

MC31.100

Order Nr.DescriptionSizes(mm)Package
MC00.100Modular Channel Set100x55x500 24
MC01.100Modular Channel Set with Bottom Outlet100x55x500 24
MC20.100Modular Channel100x55x500 35
MC21.100Modular Channel With Bottom Outlet100x55x500 30
MC30.100Modular Channel Grate100x500 35
MC31.100Modular Channel Stainless Metal Grate100x500 10
MC90.100Modular Channel End Cap100x55 1
MC91.100Modular Channel Side Outlet100x55, Ø321

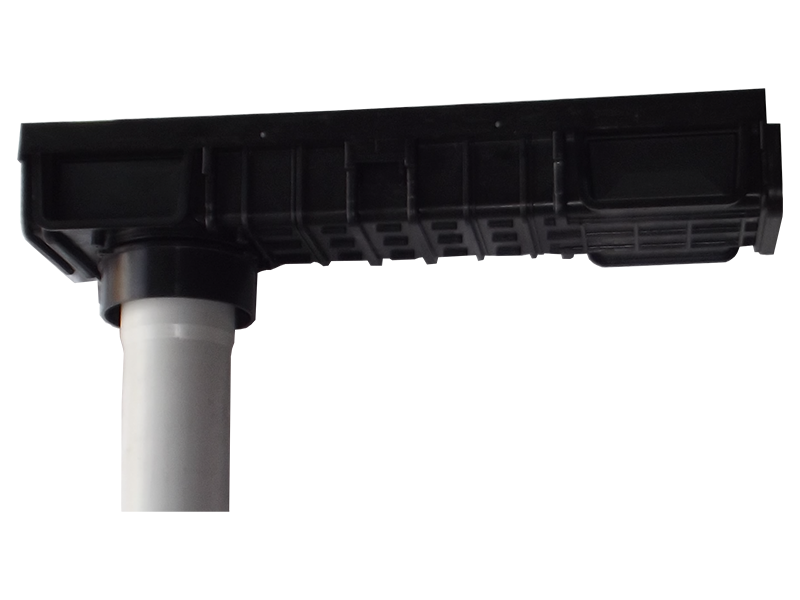

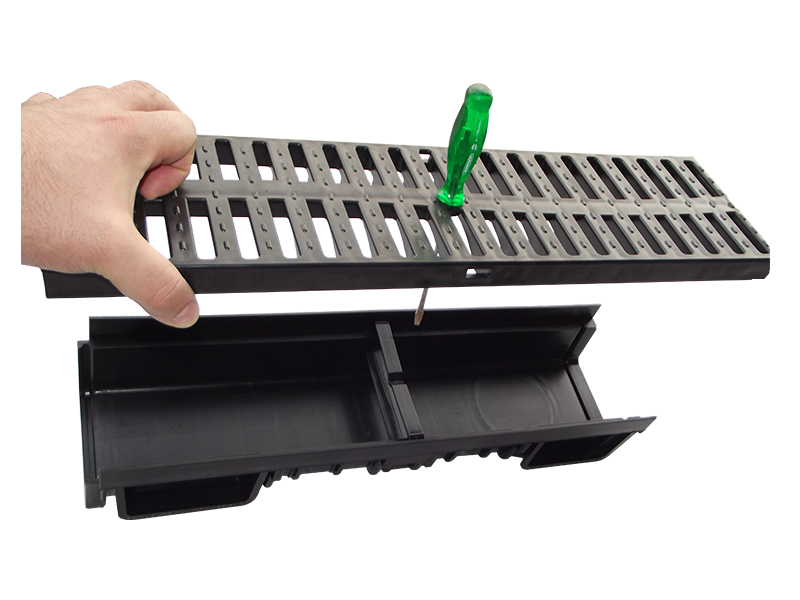

Modular Channel 130/80

MC20.130

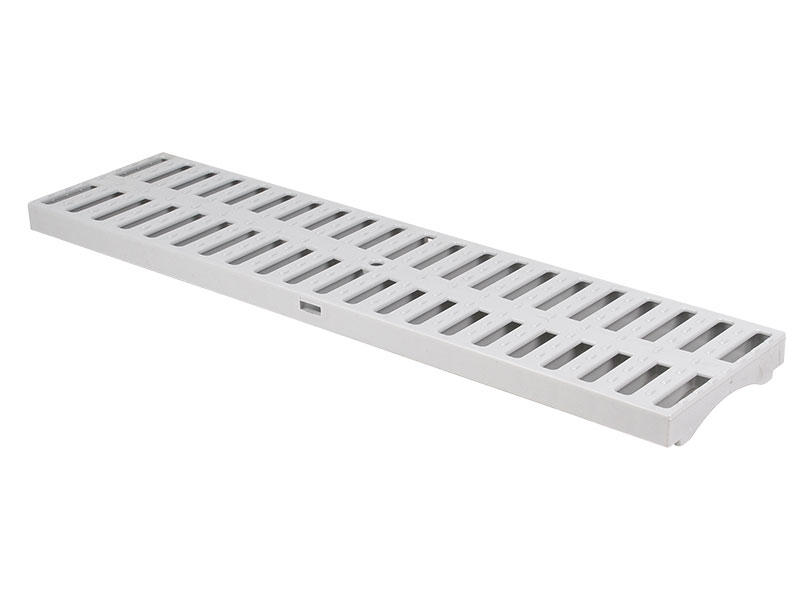

MC30.130

MC31.130

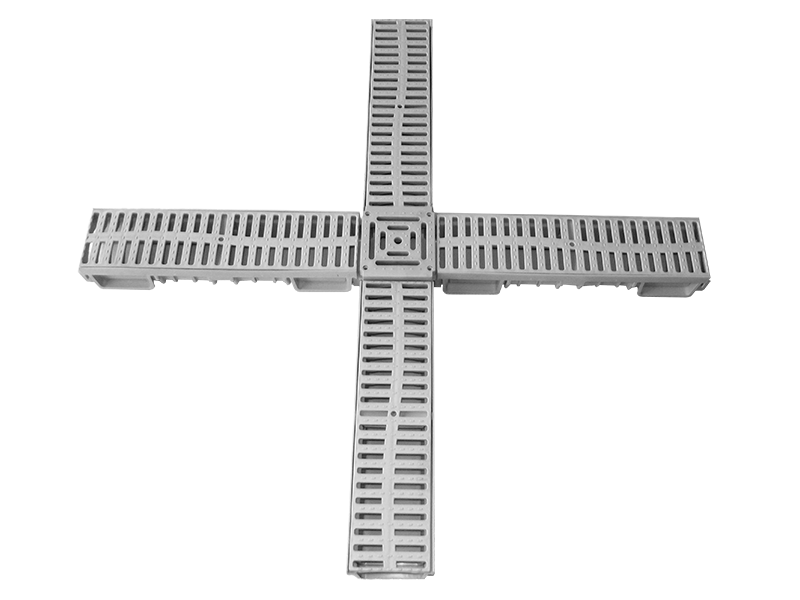

MC95.130

MC90.130     MC91.130

MC94.130

Order Nr.DescriptionSizes(mm)Package

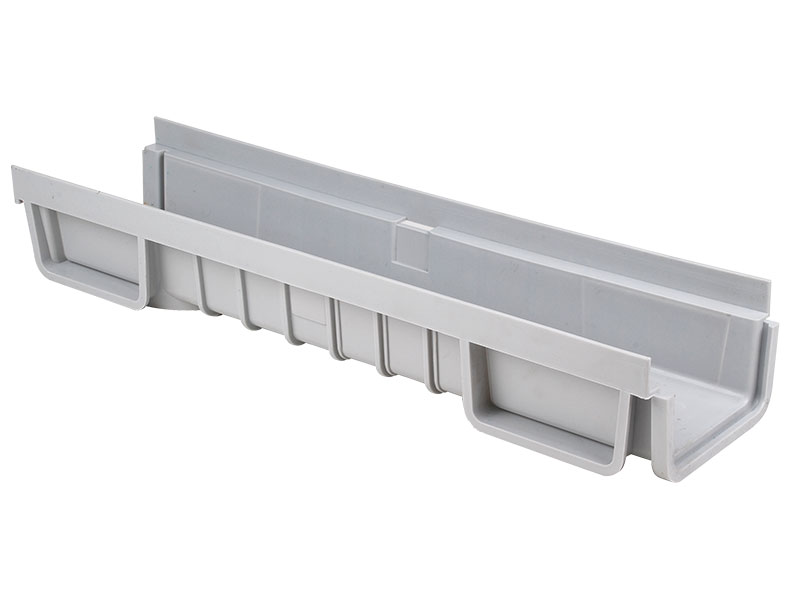

MC20.130Modular Channel130x80x500 20
MC30.130Modular Channel Grate130x500 20

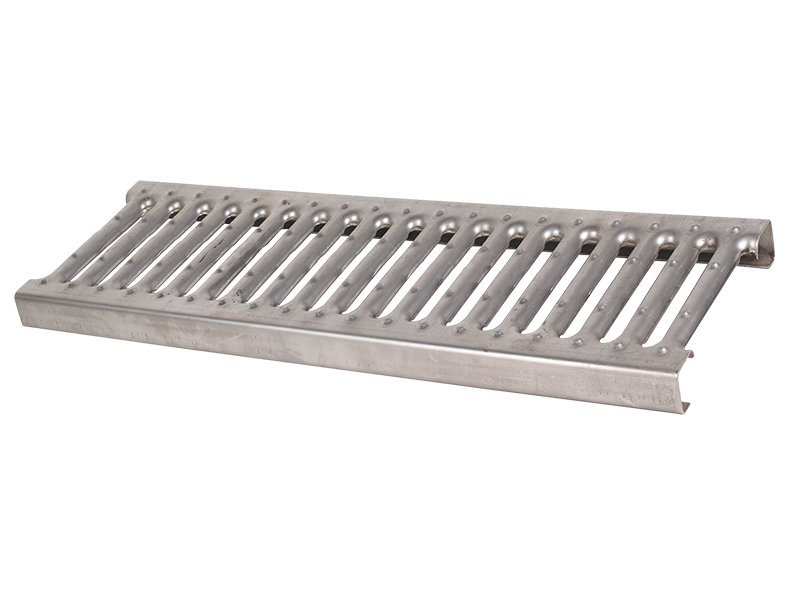

MC31.130Modular Channel Stainless Metal Grate130x500 10

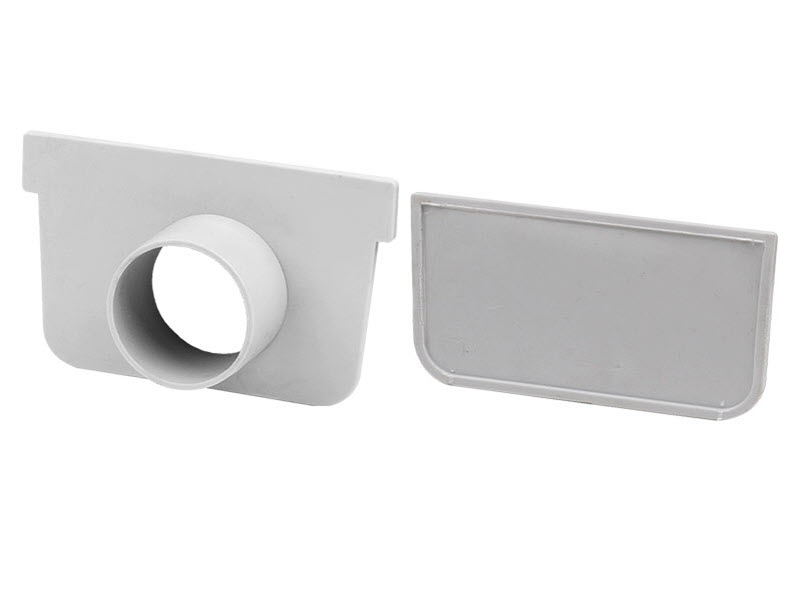

MC90.130Modular Channel End Cap130x80 1
MC91.130Modular Channel Side Outlet130x80, Ø501

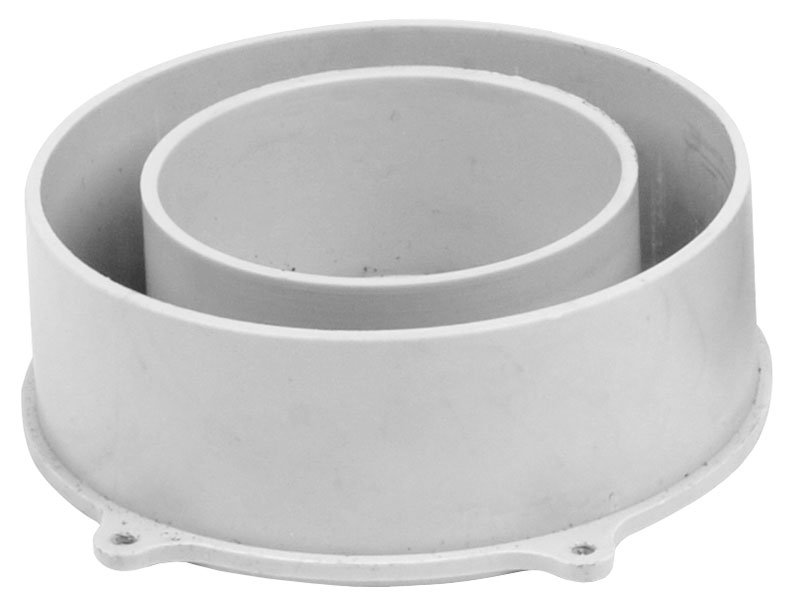

MC94.130Modular Channel Bottom Outlet PartØ110 & Ø751

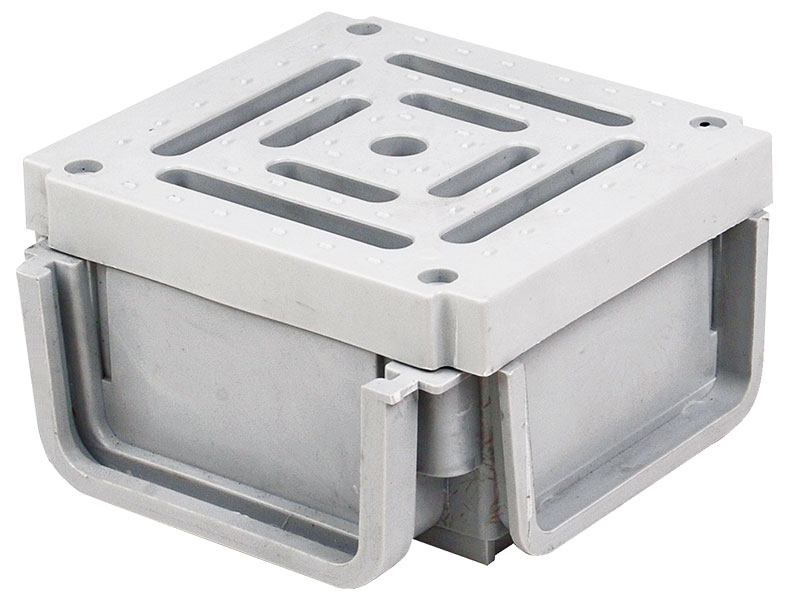

MC95.130Modular Channel Crosess130x801

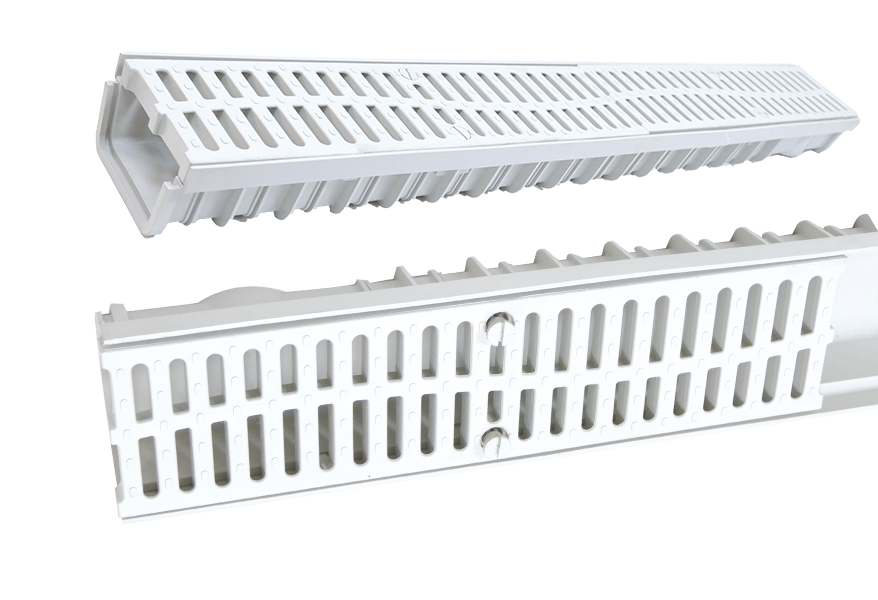

Modular Channel 130/80/1000

Order Nr.DescriptionSizes(mm)Package
MC25.130Modular Channel130x80x100020
MC26.130Modular Channel With Bottom Outlet130x80x100020
MC35.130Modular Channel Grate130x500 11

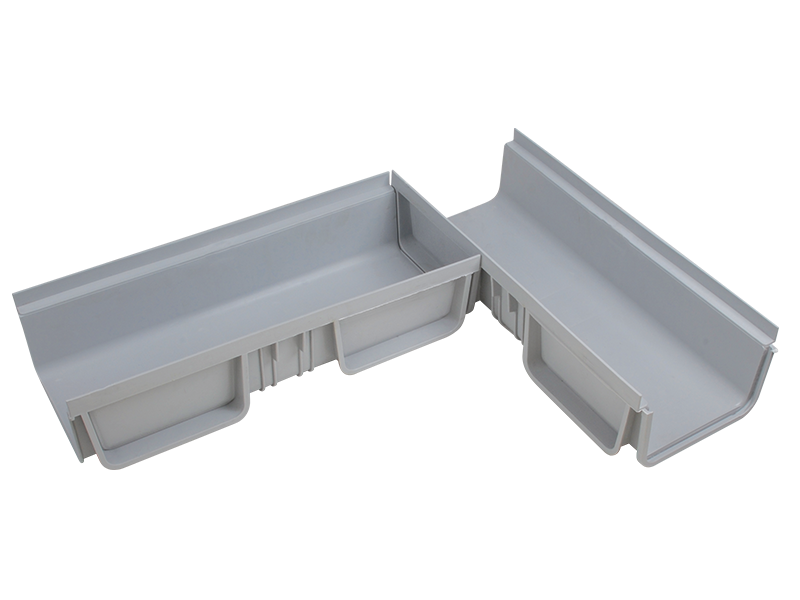

Modular Channel 200/120

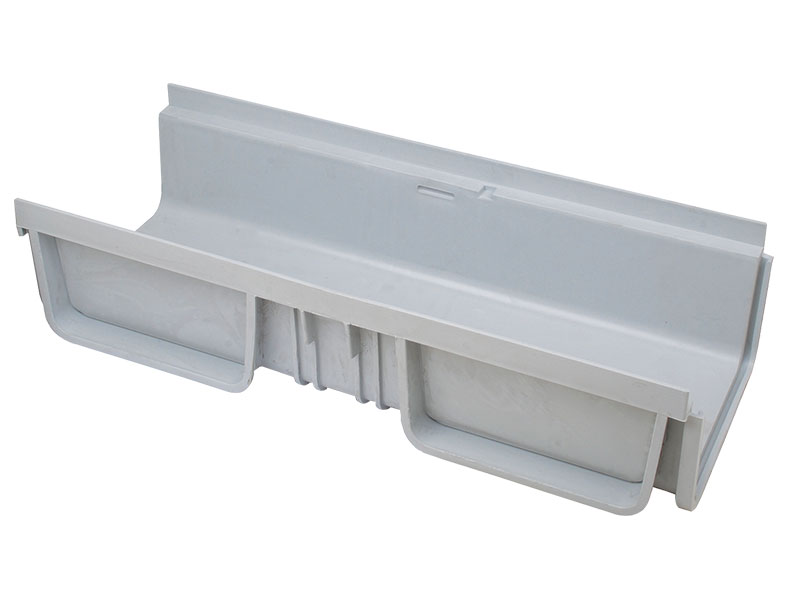

MC20.200

MC30.200

MC91.200

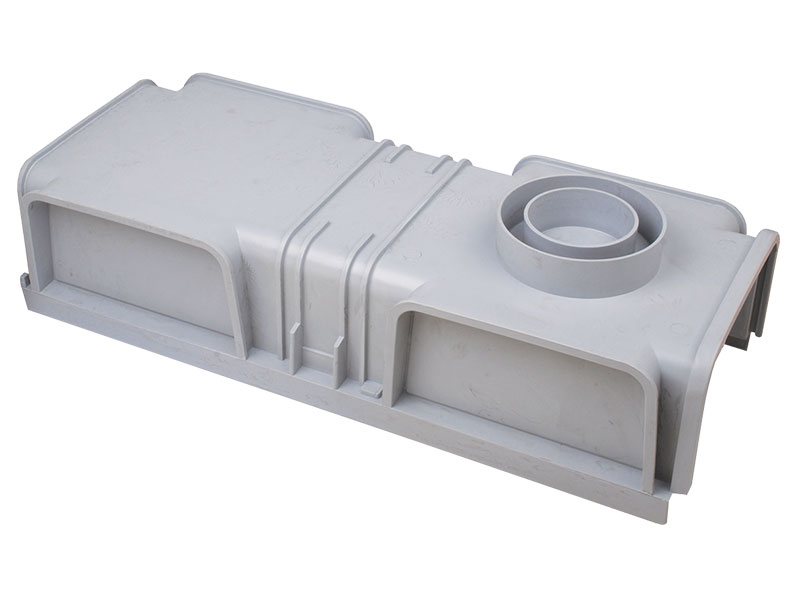

MC21.200

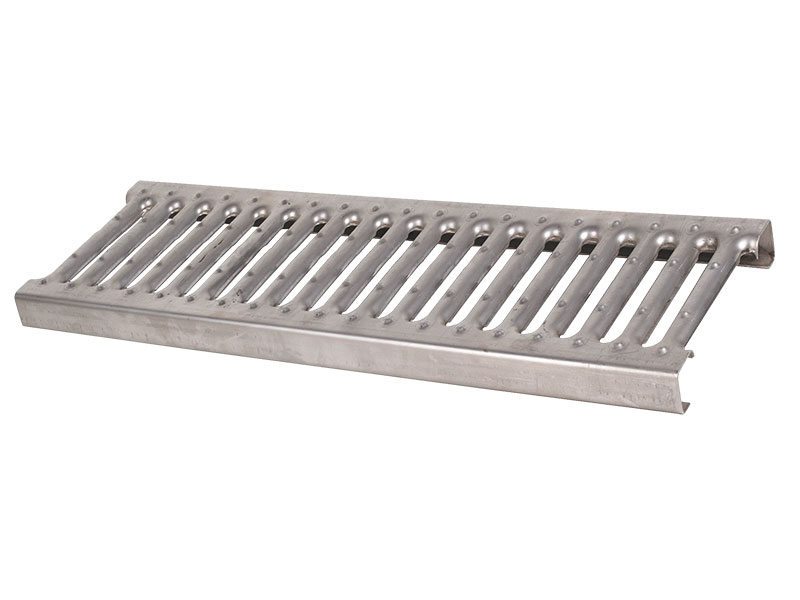

MC31.200

Order Nr.DescriptionSizes(mm)Package

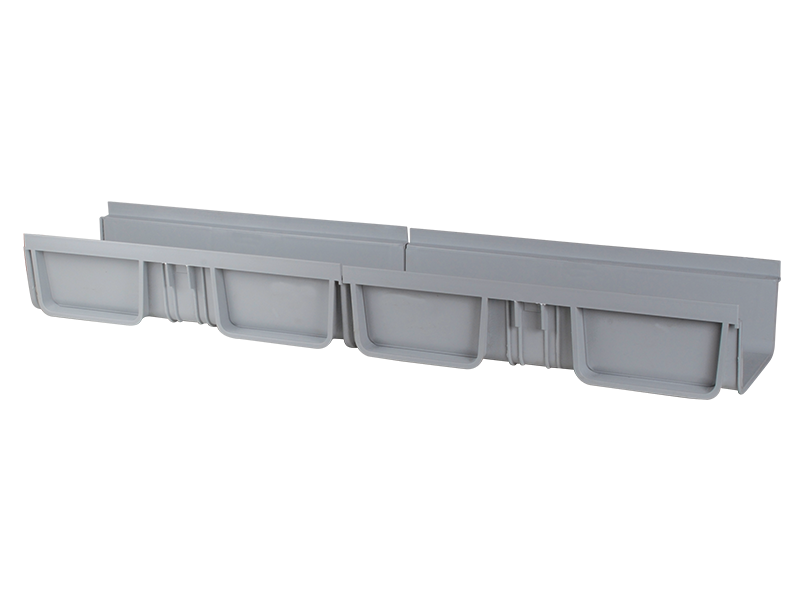

MC20.200Modular Channel200x120x500 12
MC21.200Modular Channel With Bottom Outlet200x120x500 10

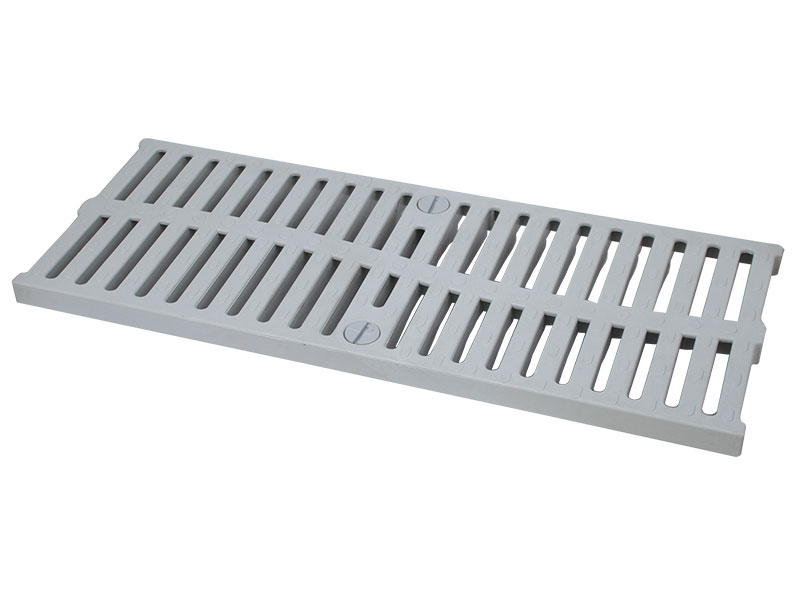

MC30.200Modular Channel Grate200x500 12
MC31.200Modular Channel Stainless Metal Grate200x500 10

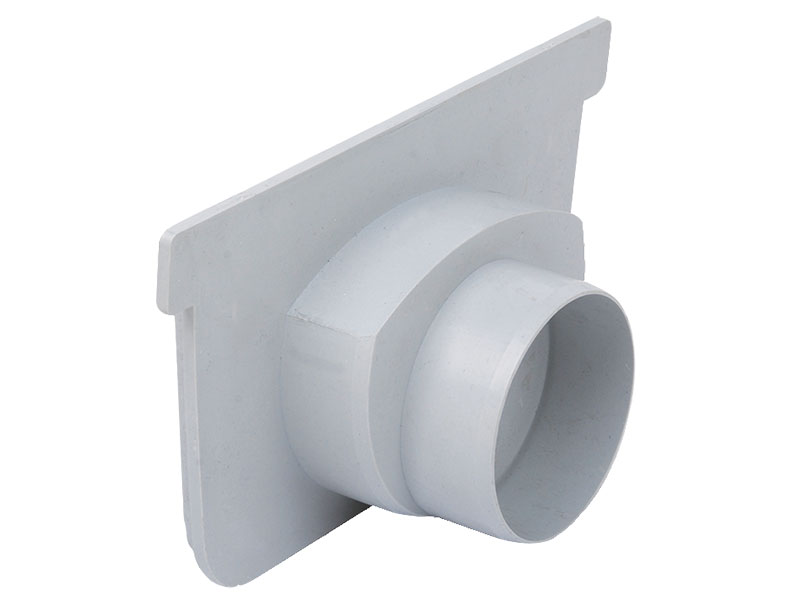

MC91.200Modular Channel Side Outlet200x120, Ø751
